5 May 2020

Starskøpe 2: Spectrograph Image Classification

by Ru Kein

For the next phase of the Starskøpe planet hunting project, I used Google Colabs to generate spectrograph images of the same star flux signals dataset from Kaggle. Due to memory constraints, I started out by only using a portion of this already small dataset as a test round. I ran the images through a Keras 2D Convolutional Network using Tensorflow, similar to the 1D CNN I built in the first phase of the project. The accuracy score was lower (0.86 vs .99), but this was to be expected due to the constraints of the dataset.

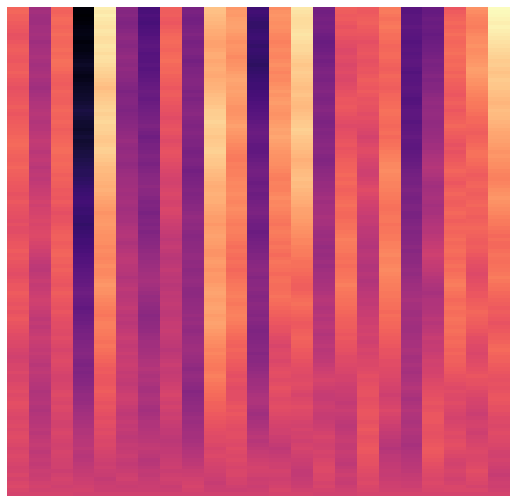

spec-test-planet-2

Results

The training set for this data included 37 non-planet star flux signal values and 37 planet host star flux signals. The test set contained only 5 planet host-stars and 5 non-planet host stars. This unusually small dataset allowed for testing the algorithm quickly and efficiently on Google Colabs. In a separate notebook, I used Google Colabs Pro to run the model with the full dataset from Kaggle, which contained over 3000 non-planet host stars with 37 planet host stars in the training set, and over 500 non-planet host stars with 5 planet host stars in the test set. Using the full dataset, the model did not successfully identify any planets, most likely due to the highly imbalanced classes. With the smaller subset of data used here, the model achieved an accuracy of 0.80, weighted precision score of 0.86, weighted recall of 0.80 and weighted F1 score of 0.79. (‘Weighted’ means combined average for both classes: 0 means non-planet star, 1 means a planet host star.)

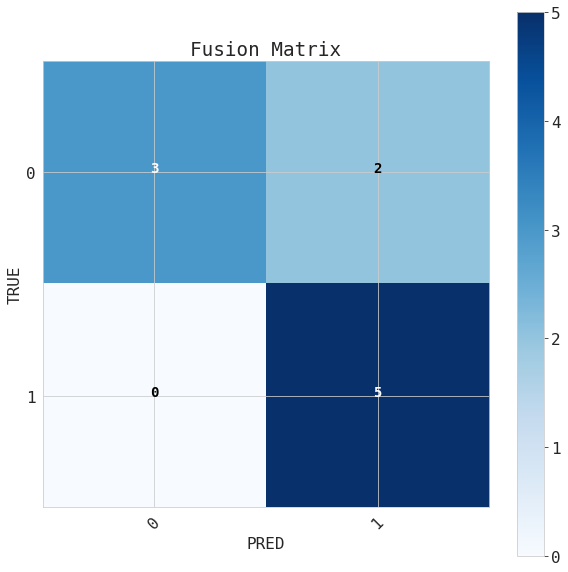

fusion matrix 1

CLASSIFICATION REPORT: ------------------------------------------------------------
          precision    recall  f1-score   support

       0       1.00      0.60      0.75         5
       1       0.71      1.00      0.83         5

accuracy                           0.80        10    macro avg       0.86      0.80      0.79        10 weighted avg       0.86      0.80      0.79        10

Future Work

In order to increase the size of the data set (that is, add more planet host stars), we can use an API to retrieve data from the MAST collection hosted on AWS, which is what I set out out to do in Starskøpe-3. We can also try another approach using a completely different model, for example training a Deep Boltzmann Machine using stacked RBMs as an autoencoder, similar to the methods used successfully on the MNIST handwriting image project.

Open In Colab

Import Libraries

import numpy as np
import pandas as pd
import matplotlib as mpl
%matplotlib inline
from matplotlib.colors import LogNorm

import seaborn as sns
sns.set_style('whitegrid')
import matplotlib.pyplot as plt
plt.style.use('seaborn-bright')

font_dict={'family':'"Titillium Web", monospace','size':16}
mpl.rc('font',**font_dict)

#ignore pink warnings
import warnings
warnings.filterwarnings('ignore')
# Allow for large # columns
pd.set_option('display.max_columns', 0)
# pd.set_option('display.max_rows','')

Import dataset which has already been split into train and test sets, exoTrain.csv.zip and exoTest.csv.zip (I compressed them from their original csv format since the training set is > 240 MB so we’ll to unzip them).

# navigating to dataset on google colabs - step 1 mount drive
from google.colab import drive
drive.mount('/gdrive',force_remount=True)

Navigate to data folder and unzip the csv zipped files

%cd /gdrive/My Drive/Colab Notebooks/starskope/data'/
!unzip -q 'exoTrain.csv.zip'
!unzip -q 'exoTest.csv.zip'
%ls

Read in train and test files then cd back to root dir

train = pd.read_csv('exoTrain.csv')
test = pd.read_csv('exoTest.csv')
%cd ../

/gdrive/My Drive/Colab Notebooks/starskope

Setting up File Names, Paths and Directories for Images

# create datasets for spectrographs
train_planets = train.loc[train['LABEL'] == 2]
train_negatives = train.loc[train['LABEL'] == 1]
test_planets = test.loc[test['LABEL'] == 2]
test_negatives = test.loc[test['LABEL'] == 1]
# remove label columns before creating images
test_planets = test_planets.copy().drop(columns=['LABEL'], axis=1)
test_negatives = test_negatives.copy().drop(columns=['LABEL'], axis=1)
train_planets = train_planets.copy().drop(columns=['LABEL'], axis=1)
train_negatives = train_negatives.copy().drop(columns=['LABEL'], axis=1)
%mkdir specs
%mkdir specs/train
%mkdir specs/test

%mkdir specs/train/planets
%mkdir specs/train/negatives
%mkdir specs/test/planets
%mkdir specs/test/negatives
# setup paths for storing images in folders created above
import os
from os import path

train_outpath = "./specs/train"
test_outpath = "./specs/test"

train_planets_outpath = "./specs/train/planets"
train_negatives_outpath = "./specs/train/negatives"
test_planets_outpath = "./specs/test/planets"
test_negatives_outpath = "./specs/test/negatives"

Convert signal data into spectrographs

This is a function I wrote for converting a flux signal into a spectrogram (using matplotlib’s specgram plotting tool)

def specgrams_for_ML(dataframe, outpath, figsize=(9,9),mode=None,cmap=None):
    """Creates 9x9 square spectrograph image of a signal passed as array
    Ideal for machine learning image classification (no axes or colorbar)

    signal: takes an array. ex: signal = np.array(test_data.loc[0])
    Fs = default is 2
    NFFT: default is 256
    noverlap: default is None
    mode: 'PSD', 'phase', 'magnitude', 'angle'
    cmap: see matplotlib specgram for options (there's a ton)
    * default is 'binary' which is black and white
    * my favorites are: 'magma', 'inferno' and 'jet'

    create black and white specgram:
    specgram_for_ML(signal)

    # TODO : option to generate fourier-transform specgrams
    fourier transform
    rf = np.fft.rfft(signal)
    rf = np.fft.rfftfreq(n=signal.size,d=1/9)
    rfshift = np.fft.fftshift(rf)
    rfspec, rfqs, t, m = make_specgram(rfshift,Fs=2,cmap='magma',mode='psd',save_for_ML=True)
    """
    import matplotlib.pyplot as plt
    import numpy as np

    if mode is None:
        mode='psd'
    if cmap is None:
        cmap = 'binary'

    for i in dataframe.index:
        signal = np.array(dataframe.iloc[i])
        fig, ax = plt.subplots(figsize=figsize,frameon=False)
        fig, freqs, t, m = plt.specgram(signal, Fs=2, NFFT=256, mode=mode,cmap=cmap)
        plt.axis(False)
        plt.savefig(path.join(outpath,'spec_{0}'.format(i)),bbox_inches='tight')

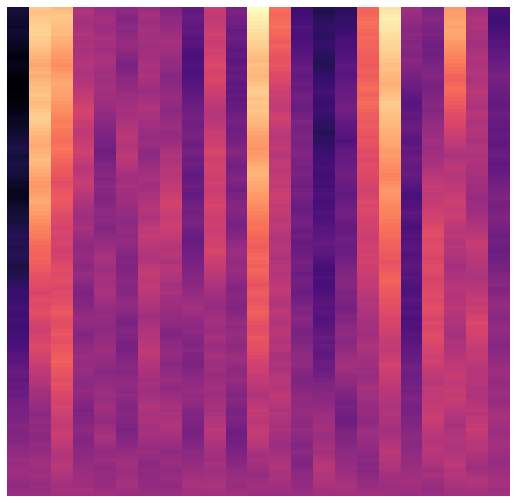

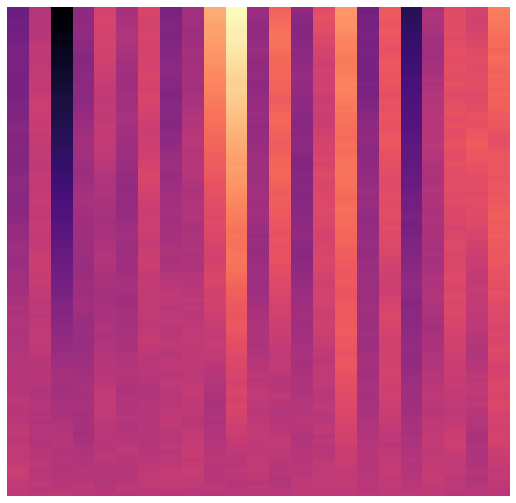

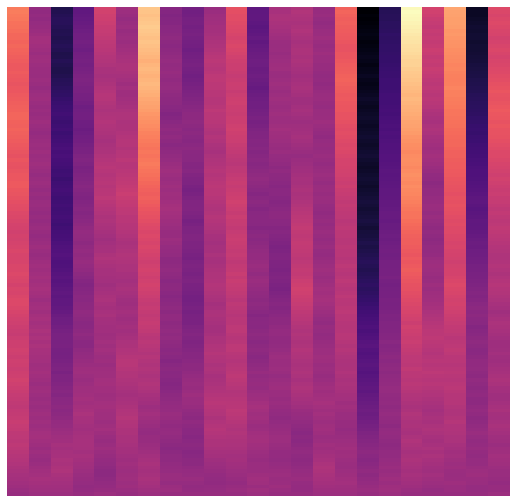

Test Data: Planets

specgrams_for_ML(test_planets, test_planets_outpath,figsize=(9,9),
                 mode='phase',cmap='magma')

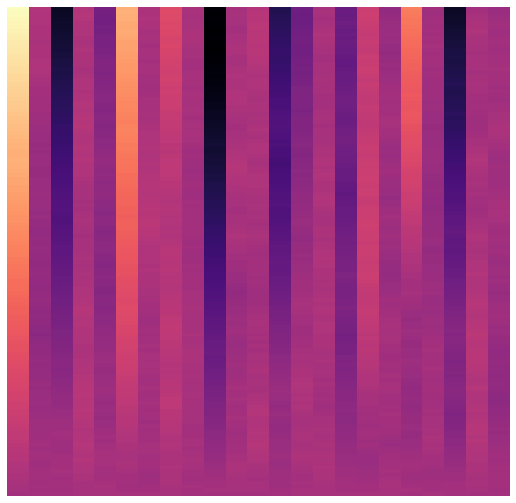

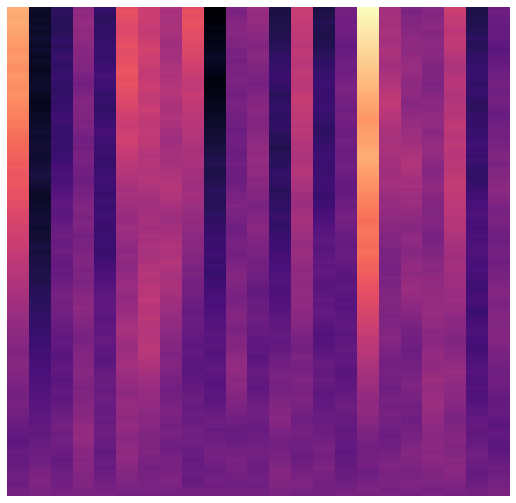

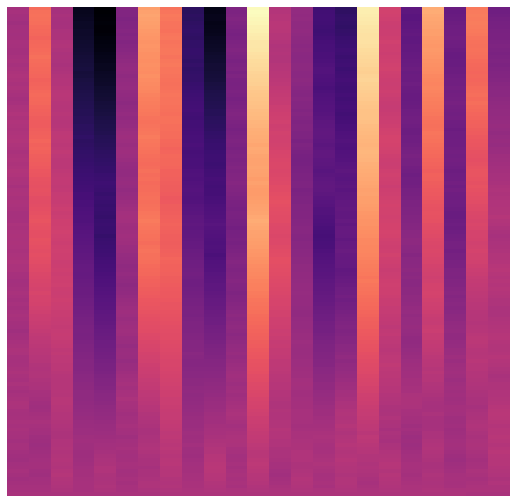

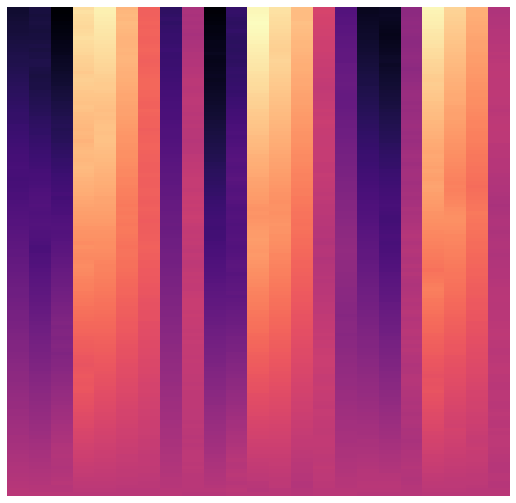

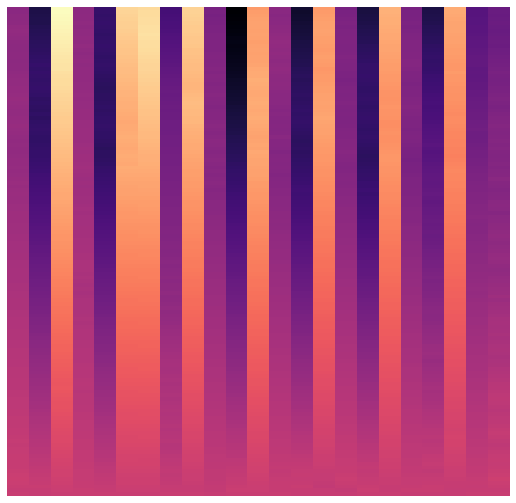

spec-test-planet-0
spec-test-planet-1
spec-test-planet-2
spec-test-planet-3
spec-test-planet-4

Test Data: Negatives (no planets)

Note - for the first run-through we can match class weights by creating only 5 negatives to go with only 5 positives. Obviously we’d need to use a bigger dataset than 10 total test observations, however for now I’m just demonstrating the process of converting to specgrams and runnning the model.

# limiting to 5 to match class weights
counter = 0
for i in test_negatives.index:
    if counter < 5:
        signal = np.array(test_negatives.iloc[i])
        fig, ax = plt.subplots(figsize=(9,9),frameon=False)
        fig, freqs, t, m = plt.specgram(signal, Fs=2, NFFT=256, mode='phase',cmap='magma')
        plt.axis(False)
        plt.savefig(path.join(test_negatives_outpath,'spec_{0}'.format(i)),bbox_inches='tight')
        counter+=1

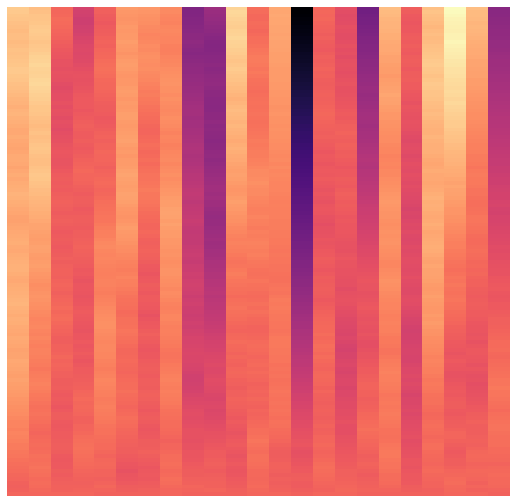

spec-test-planet-0
spec-test-planet-1
spec-test-planet-2
spec-test-planet-3
spec-test-planet-4
specgrams_for_ML(train_planets, train_planets_outpath,figsize=(9,9),
                 mode='phase',cmap='magma')

Again, match class weights by limiting the negatives in training set to just 37.

# limiting to 37 to match class weights
counter = 0
for i in train_negatives.index:
    if counter < 37:
        signal = np.array(train_negatives.iloc[i])
        fig, ax = plt.subplots(figsize=(9,9),frameon=False)
        fig, freqs, t, m = plt.specgram(signal, Fs=2, NFFT=256, mode='phase',cmap='magma')
        plt.axis(False)
        plt.savefig(path.join(train_negatives_outpath,'spec_{0}'.format(i)),bbox_inches='tight')
        counter+=1

Preparing Images using Flow

# Install Pillow and OpenCV
!pip install pillow
!pip install opencv-contrib-python
# converting an image with the Keras API

from PIL import Image
from keras.preprocessing import image
from imageio import imread
from skimage.transform import resize
import cv2,glob
from tqdm import tqdm

from keras.preprocessing.image import load_img
from keras.preprocessing.image import img_to_array
from keras.preprocessing.image import array_to_img
base_folder = r'specs/'
os.listdir(base_folder)

train_base_dir = base_folder+'train/'
test_base_dir = base_folder+'test/'

train_planets_dir = train_base_dir+'planets/'
train_negatives_dir = train_base_dir+'negatives/'

test_planets_dir = test_base_dir+'planets/'
test_negatives_dir = test_base_dir+'negatives/'

planet_train_files = glob.glob(train_planets_dir+'*.png')
negative_train_files = glob.glob(train_negatives_dir+'*.png')
all_train_files = [*planet_train_files, *negative_train_files]

planet_test_files = glob.glob(test_planets_dir+'*.png')
negative_test_files = glob.glob(test_negatives_dir+'*.png')
all_test_files = [*planet_test_files, *negative_test_files]

all_filename_vars = [planet_train_files, negative_train_files,
                     planet_test_files, negative_test_files]

Helper functions

def load_img_cv2(filename, RGB=True):
    import cv2
    IMG = cv2.imread(filename)

    if RGB:
        cmap = cv2.COLOR_BGR2RGB

    else:
        cmap=cv2.COLOR_BGR2GRAY

    return cv2.cvtColor(IMG, cmap)

from PIL import Image
from keras.preprocessing import image
from imageio import imread
from skimage.transform import resize
from tqdm import tqdm

# From James Irving : https://colab.research.google.com/drive/1fwXPY3IDHxNiv7YgOpt3p5BvUaO4VruB#scrollTo=L5CNHxnagDjo

# defining a function to read images and convert to array
def read_img(img_path, target_size=(64,64,3)):
    img = image.load_img(img_path, target_size=target_size)
    img = image.img_to_array(img)
    return img

# Read in training and test filenames to produce X and y data splits.

def load_train_test_val(planet_train_filenames, negative_train_filenames,
                        planet_test_filenames, negative_test_filenames,
                        val_size=0.1,img_size=(64,64,3)):
    # y labels are encoded as 0=negatives, 1=planets
    # returns X_train, X_test, y_train, y_test, y_val

    import numpy as np

    display('[i] LOADING IMAGES')
    train_img = []
    train_label = []

    for img_path in tqdm(planet_train_files):
        train_img.append(read_img(img_path, target_size=img_size))
        train_label.append(1)

    for img_path in tqdm(negative_train_files):
        train_img.append(read_img(img_path, target_size=img_size))
        train_label.append(0)

    test_img = []
    test_label = []

    for img_path in tqdm(planet_test_files):
        test_img.append(read_img(img_path, target_size=img_size))
        test_label.append(1)

    for img_path in tqdm(negative_test_files):
        test_img.append(read_img(img_path, target_size=img_size))
        test_label.append(0)

    from sklearn.model_selection import train_test_split
    X = np.array(train_img, np.float32)
    y = np.array(train_label)

    X_test = np.array(test_img, np.float32)
    y_test = np.array(test_label)

    X_train,X_val, y_train, y_val = train_test_split(X,y,test_size=0.1)

    print('\n[i] Length of Splits:')
    print(f"X_train={len(X_train)}, X_test={len(X_test)}, X_val={len(X_val)}")

    return X_train, X_test, X_val, y_train, y_test, y_val
X_train,X_test,X_val,y_train,y_test,y_val=load_train_test_val(planet_train_files,
                                                              negative_train_files,
                                                              planet_test_files,
                                                              negative_test_files,
                                                              val_size=0.1,
                                                              img_size=(64,64,3))

‘[i] LOADING IMAGES’ 100%|██████████| 37/37 [00:07<00:00, 4.80it/s] 100%|██████████| 37/37 [00:07<00:00, 4.85it/s] 100%|██████████| 5/5 [00:01<00:00, 4.92it/s] 100%|██████████| 5/5 [00:01<00:00, 4.75it/s]

[i] Length of Splits: X_train=66, X_test=10, X_val=8

# create function for ImageDataGenerators for train, test and val data.
# returns training_set, test_set, val_set
def train_test_val_datagens(X_train, X_test, X_val, y_train, y_test, y_val,
                            BATCH_SIZE = 32,  train_datagen_kws=dict(
                                shear_range=0.2,
                                zoom_range=0.2,
                                horizontal_flip=True)):
    """Creates ImageDataGenerators for train,test,val data.
    Returns: training_set,test_set,val_set"""
    ## Create training and test data
    from keras.preprocessing.image import ImageDataGenerator

    train_datagen = ImageDataGenerator(rescale = 1./255, **train_datagen_kws)
    test_datagen = ImageDataGenerator(rescale = 1./255)
    val_datagen = ImageDataGenerator(rescale = 1./255)

    training_set = train_datagen.flow(X_train, y=y_train, batch_size=BATCH_SIZE)
    test_set = test_datagen.flow(X_test, y=y_test, batch_size=BATCH_SIZE)
    val_set = val_datagen.flow(X_val, y=y_val, batch_size=BATCH_SIZE)

    return training_set, test_set, val_set
train_test_val_vars = [X_train, X_test, X_val, y_train, y_test, y_val]

training_set,test_set,val_set=train_test_val_datagens(*train_test_val_vars)
def get_shapes_dict(training_set, verbose=True):
    shapes = ["Batchsize", "img_width", "img_height", "img_dim"]
    SHAPES = dict(zip(shapes, training_set[0][0].shape))

    if verbose:
        print('SHAPES DICT:')
        print(SHAPES)
        print(training_set[0][0].shape)
        print('\n[i] Labels for batch (1=negative, 2=planet')
        print(training_set[0][1])

    return SHAPES
SHAPES = get_shapes_dict(training_set)

SHAPES DICT: {‘Batchsize’: 32, ‘img_width’: 64, ‘img_height’: 64, ‘img_dim’: 3} (32, 64, 64, 3)

[i] Labels for batch (1=negative, 2=planet [1 1 1 1 1 1 1 1 0 0 0 1 0 0 1 0 1 1 0 0 1 1 1 0 0 1 1 1 0 0 0 0]

def complete_image_processing(*train_test_filenames,img_size=(64,64,3),val_size=0.1,
                              BATCH_SIZE = 32, train_datagen_kws= dict(
                                shear_range = 0.2,
                                zoom_range = 0.2,
                                horizontal_flip = True),verbose=True):
    """Calls all 3 image prep functions and returns training,test,val datagens,
    plus SHAPES dict."""
    # img_params = list(locals())
    # print(img_params[1:])
    # if verbose:
        # print('\n[i] Creating training ImageDataGenerator using:')
        # [print(f"{img_params[i]}") for i in range(len(img_params))];


    # print(len(train_test_filenames))
    if len(train_test_filenames) != 4:
        raise Exception('Must provide 4 filenames')
    train_test_val_vars = load_train_test_val(
        *train_test_filenames, val_size=0.1,img_size=img_size)

    training_set,test_set,val_set = train_test_val_datagens(*train_test_val_vars,
                                                            BATCH_SIZE=BATCH_SIZE)

    SHAPES = get_shapes_dict(training_set)

    return training_set,test_set,val_set,SHAPES
training_set,test_set,val_set,SHAPES = \
complete_image_processing(*all_filename_vars, img_size=(64,64,3),BATCH_SIZE=64)

‘[i] LOADING IMAGES’ 100%|██████████| 37/37 [00:00<00:00, 166.17it/s] 100%|██████████| 37/37 [00:00<00:00, 167.31it/s] 100%|██████████| 5/5 [00:00<00:00, 151.31it/s] 100%|██████████| 5/5 [00:00<00:00, 163.76it/s]

[i] Length of Splits: X_train=66, X_test=10, X_val=8 SHAPES DICT: {‘Batchsize’: 64, ‘img_width’: 64, ‘img_height’: 64, ‘img_dim’: 3} (64, 64, 64, 3)

[i] Labels for batch (1=negative, 2=planet [1 0 1 0 0 1 0 1 0 0 0 1 1 0 1 0 1 0 1 0 0 0 0 0 1 0 1 1 0 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 1 1 1 1 0 0 0 0 1 0 0 0 1 0 1 1 1 1 0 0]

class Timer():
    def __init__(self, start=True,time_fmt='%m/%d/%y - %T'):
        import tzlocal
        import datetime as dt

        self.tz = tzlocal.get_localzone()
        self.fmt= time_fmt
        self._created = dt.datetime.now(tz=self.tz)

        if start:
            self.start()

    def get_time(self):
        import datetime as dt
        return dt.datetime.now(tz=self.tz)



    def start(self,verbose=True):
        self._laps_completed = 0
        self.start = self.get_time()
        if verbose:
            print(f'[i] Timer started at {self.start.strftime(self.fmt)}')

    def stop(self, verbose=True):
        self._laps_completed += 1
        self.end = self.get_time()
        self.elapsed = self.end -  self.start
        if verbose:
            print(f'[i] Timer stopped at {self.end.strftime(self.fmt)}')
            print(f'  - Total Time: {self.elapsed}')


Using Colabs Pro GPU

#https://colab.research.google.com/notebooks/pro.ipynb
gpu_info = !nvidia-smi
gpu_info = '\n'.join(gpu_info)
if gpu_info.find('failed') >= 0:
  print('Select the Runtime → "Change runtime type" menu to enable a GPU accelerator, ')
  print('and then re-execute this cell.')
else:
  print(gpu_info)

Sun May 3 08:47:23 2020
+—————————————————————————–+ | NVIDIA-SMI 440.64.00 Driver Version: 418.67 CUDA Version: 10.1 | |——————————-+———————-+———————-+ | GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. | |===============================+======================+======================| | 0 Tesla P100-PCIE… Off | 00000000:00:04.0 Off | 0 | | N/A 42C P0 26W / 250W | 0MiB / 16280MiB | 0% Default | +——————————-+———————-+———————-+

+—————————————————————————–+ | Processes: GPU Memory | | GPU PID Type Process name Usage | |=============================================================================| | No running processes found | +—————————————————————————–+

from psutil import virtual_memory
ram_gb = virtual_memory().total / 1e9
print('Your runtime has {:.1f} gigabytes of available RAM\n'.format(ram_gb))

if ram_gb < 20:
  print('To enable a high-RAM runtime, select the Runtime → "Change runtime type"')
  print('menu, and then select High-RAM in the Runtime shape dropdown. Then, ')
  print('re-execute this cell.')
else:
  print('You are using a high-RAM runtime!')

Your runtime has 27.4 gigabytes of available RAM

You are using a high-RAM runtime!

CNN

#!pip install fsds_100719
from fsds_100719.imports import *
clock = fs.jmi.Clock()
# # Part 1 - Building the CNN

clock.tic('')
# # Importing the Keras libraries and packages
from keras.models import Sequential
from keras.layers import Conv2D
from keras.layers import MaxPooling2D
from keras.layers import Flatten
from keras.layers import Dense

# # Initialising the CNN
classifier = Sequential()

# # Step 1 - Convolution
classifier.add(Conv2D(SHAPES['Batchsize'], (3, 3),
                             input_shape = (SHAPES['img_width'],
                                            SHAPES['img_height'],
                                            SHAPES['img_dim']),
                             activation = 'relu'))

classifier.add(Conv2D(SHAPES['Batchsize'], (3, 3),
                      input_shape = (SHAPES['img_width'],
                                     SHAPES['img_height'],
                                     SHAPES['img_dim']),
                       activation = 'relu'))
# # Step 2 - Pooling
classifier.add(MaxPooling2D(pool_size = (2, 2)))

# # Adding a second convolutional layer
classifier.add(Conv2D(SHAPES['Batchsize'], (3, 3),
                      activation = 'relu'))
classifier.add(MaxPooling2D(pool_size = (2, 2)))

# # Step 3 - Flattening
classifier.add(Flatten())

# # Step 4 - Full connection
classifier.add(Dense(units = SHAPES['Batchsize'], activation = 'relu'))

classifier.add(Dense(units = 1, activation = 'sigmoid'))

# # Compiling the CNN
classifier.compile(optimizer = 'adam',
                   loss = 'binary_crossentropy',
                   metrics = ['accuracy'])
# print()
display(classifier.summary())


# # Part 2 - Fitting the CNN to the images

history =classifier.fit_generator(training_set,
                         steps_per_epoch = 500,
                         epochs = 3,
                         validation_data = val_set,#test_set,
                         validation_steps =100,workers=-1)

clock.toc('')

— CLOCK STARTED @: 05/03/20 - 08:48:04 AM Label: — Model: “sequential_2” _______________________ Layer (type) Output Shape Param #
================================================================= conv2d_1 (Conv2D) (None, 62, 62, 64) 1792
__
_____________________ conv2d_2 (Conv2D) (None, 60, 60, 64) 36928
_______________________ max_pooling2d_1 (MaxPooling2 (None, 30, 30, 64) 0
__
_____________________ conv2d_3 (Conv2D) (None, 28, 28, 64) 36928
_______________________ max_pooling2d_2 (MaxPooling2 (None, 14, 14, 64) 0
__
_____________________ flatten_1 (Flatten) (None, 12544) 0
_______________________ dense_1 (Dense) (None, 64) 802880
__
_____________________ dense_2 (Dense) (None, 1) 65
================================================================= Total params: 878,593 Trainable params: 878,593 Non-trainable params: 0 _________________________ None Epoch 1/3 500/500 [==============================] - 31s 61ms/step - loss: 0.5879 - accuracy: 0.6630 - val_loss: 0.3231 - val_accuracy: 0.7500 Epoch 2/3 500/500 [==============================] - 24s 48ms/step - loss: 0.2982 - accuracy: 0.8691 - val_loss: 0.9494 - val_accuracy: 0.6250 Epoch 3/3 500/500 [==============================] - 24s 49ms/step - loss: 0.1016 - accuracy: 0.9618 - val_loss: 1.4923 - val_accuracy: 0.7500 — TOTAL DURATION = 1 min, 27.978 sec — Summary Table of Clocked Processes TOTAL 05/03/20 - 08:48:04 AM 1 min, 27.978 sec

SPACEKIT Computer() Function


# ********* STARSKØPE.SPACEKIT.COMPUTER ********* #
"""
helper functions for computing predictions and scores
for evaluating a machine learning model.
TODO
- save metrics to textfile/pickle objs and/or dictionaries
"""
# -----------------
# STATIC CLASS METHODS
# -----------------
# * predictions
#   get_preds()
#   fnfp()
#
# * Plots
#   keras_history()
#   fusion_matrix()
#   roc_plots()
#
# * One-shot All the above
#   compute()
#
# ********* /\/\/\/\/\/\/\/\/\/\/\/\/\/\/\/ ********* #

import pandas as pd
import numpy as np
import itertools
import matplotlib as mpl
import matplotlib.pyplot as plt
from sklearn import metrics
from sklearn.metrics import accuracy_score, recall_score, roc_curve, roc_auc_score, jaccard_score
from sklearn.metrics import confusion_matrix



def get_preds(X,y,model=None,verbose=False):
    if model is None:
        model=model
    # class predictions
    y_true = y.flatten()

    y_pred = model.predict_classes(X).flatten()
    preds = pd.Series(y_pred).value_counts(normalize=False)

    if verbose:
        print(f"y_pred:\n {preds}")
        print("\n")

    return y_true, y_pred


def fnfp(X,y,model, training=False):

    import numpy as np

    y_pred = np.round( model.predict(X) )

    pos_idx = y==1
    neg_idx = y==0

    #tp = np.sum(y_pred[pos_idx]==1)/y_pred.shape[0]
    fn = np.sum(y_pred[pos_idx]==0)/y_pred.shape[0]

    #tn = np.sum(y_pred[neg_idx]==0)/y_pred.shape[0]
    fp = np.sum(y_pred[neg_idx]==1)/y_pred.shape[0]

    if training:
        print(f"FN Rate (Training): {round(fn*100,4)}%")
        print(f"FP Rate (Training): {round(fp*100,4)}%")
    else:
        print(f"FN Rate (Test): {round(fn*100,4)}%")
        print(f"FP Rate (Test): {round(fp*100,4)}%")

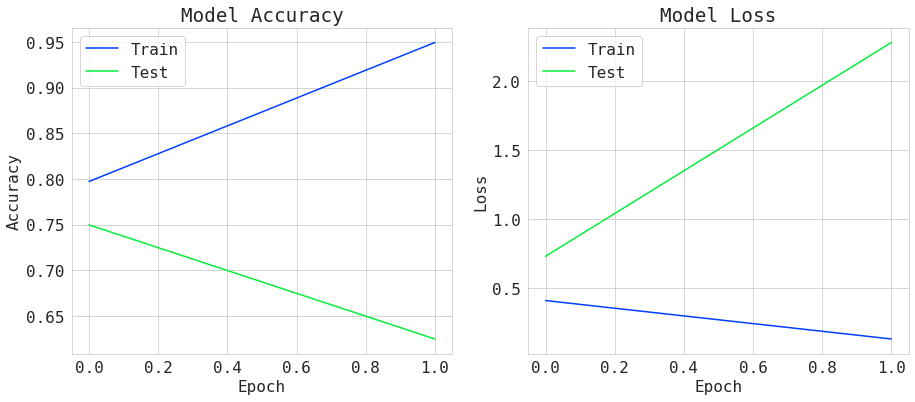

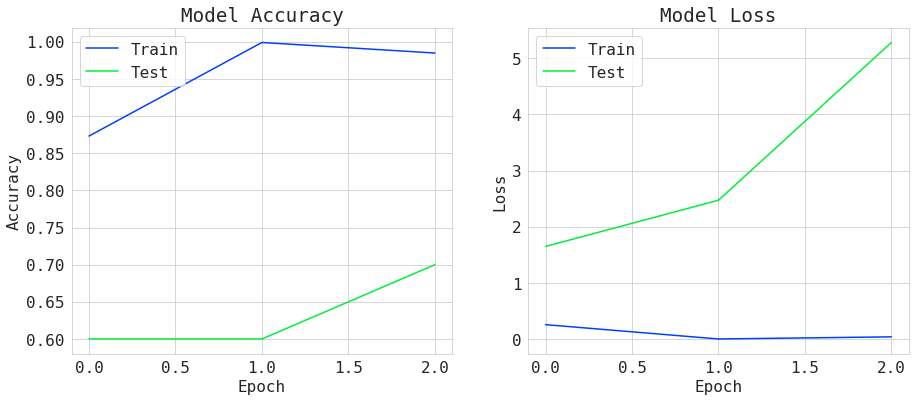

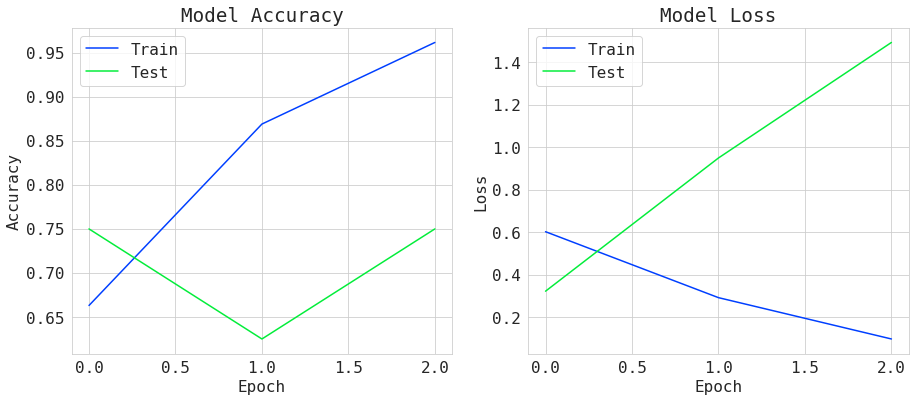

def keras_history(history, figsize=(10,4)):
    """
    side by side sublots of training val accuracy and loss (left and right respectively)
    """

    import matplotlib.pyplot as plt

    fig,axes=plt.subplots(ncols=2,figsize=(15,6))
    axes = axes.flatten()

    ax = axes[0]
    ax.plot(history.history['accuracy'])
    ax.plot(history.history['val_accuracy'])
    ax.set_title('Model Accuracy')
    ax.set_ylabel('Accuracy')
    ax.set_xlabel('Epoch')
    ax.legend(['Train', 'Test'], loc='upper left')

    ax = axes[1]
    ax.plot(history.history['loss'])
    ax.plot(history.history['val_loss'])
    ax.set_title('Model Loss')
    ax.set_ylabel('Loss')
    ax.set_xlabel('Epoch')
    ax.legend(['Train', 'Test'], loc='upper left')
    plt.show()

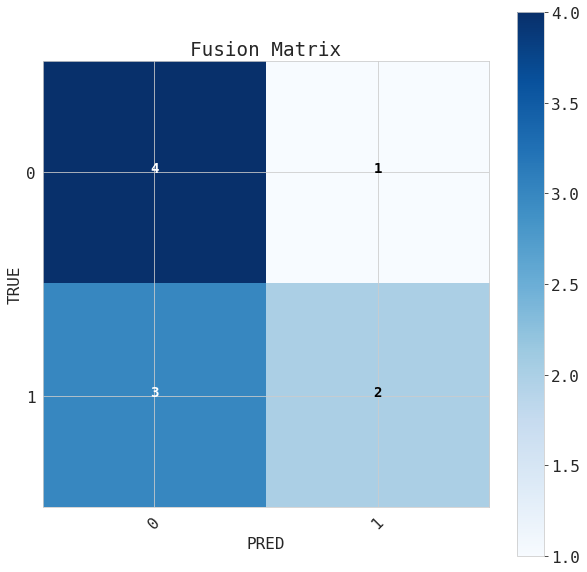

 # FUSION_MATRIX()

def fusion_matrix(matrix, classes=None, normalize=False, title='Fusion Matrix', cmap='Blues',
    print_raw=False):
    """
    FUSION MATRIX!
    -------------
    It's like a confusion matrix...without the confusion.

    matrix: can pass in matrix or a tuple (ytrue,ypred) to create on the fly
    classes: class names for target variables
    """
    from sklearn import metrics
    from sklearn.metrics import confusion_matrix #ugh
    import itertools
    import numpy as np
    import matplotlib as mpl
    import matplotlib.pyplot as plt

    # make matrix if tuple passed to matrix:
    if isinstance(matrix, tuple):
        y_true = matrix[0].copy()
        y_pred = matrix[1].copy()

        if y_true.ndim>1:
            y_true = y_true.argmax(axis=1)
        if y_pred.ndim>1:
            y_pred = y_pred.argmax(axis=1)
        fusion = metrics.confusion_matrix(y_true, y_pred)
    else:
        fusion = matrix

    # INTEGER LABELS
    if classes is None:
        classes=list(range(len(matrix)))

    #NORMALIZING
    # Check if normalize is set to True
    # If so, normalize the raw fusion matrix before visualizing
    if normalize:
        fusion = fusion.astype('float') / fusion.sum(axis=1)[:, np.newaxis]
        fmt='.2f'
    else:
        fmt='d'

    # PLOT
    fig, ax = plt.subplots(figsize=(10,10))
    plt.imshow(fusion, cmap=cmap, aspect='equal')

    # Add title and axis labels
    plt.title(title)
    plt.ylabel('TRUE')
    plt.xlabel('PRED')

    # Add appropriate axis scales
    tick_marks = np.arange(len(classes))
    plt.xticks(tick_marks, classes, rotation=45)
    plt.yticks(tick_marks, classes)
    #ax.set_ylim(len(fusion), -.5,.5) ## <-- This was messing up the plots!

    # Text formatting
    fmt = '.2f' if normalize else 'd'
    # Add labels to each cell
    thresh = fusion.max() / 2.
    # iterate thru matrix and append labels
    for i, j in itertools.product(range(fusion.shape[0]), range(fusion.shape[1])):
        plt.text(j, i, format(fusion[i, j], fmt),
                horizontalalignment='center',
                color='white' if fusion[i, j] > thresh else 'black',
                size=14, weight='bold')

    # Add a legend
    plt.colorbar()
    plt.show()
    return fusion, fig

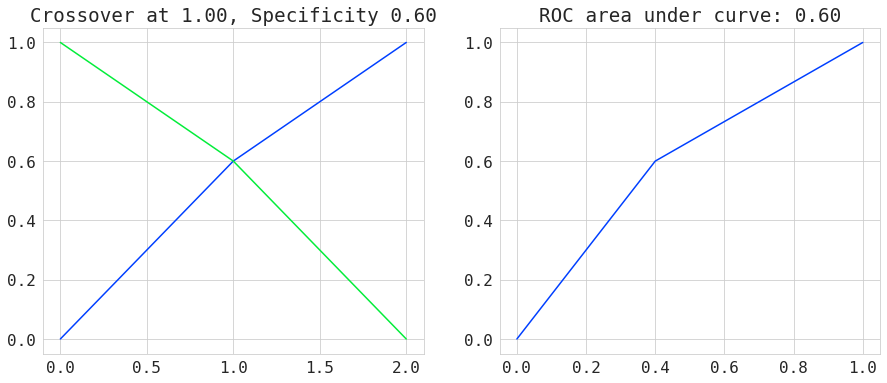

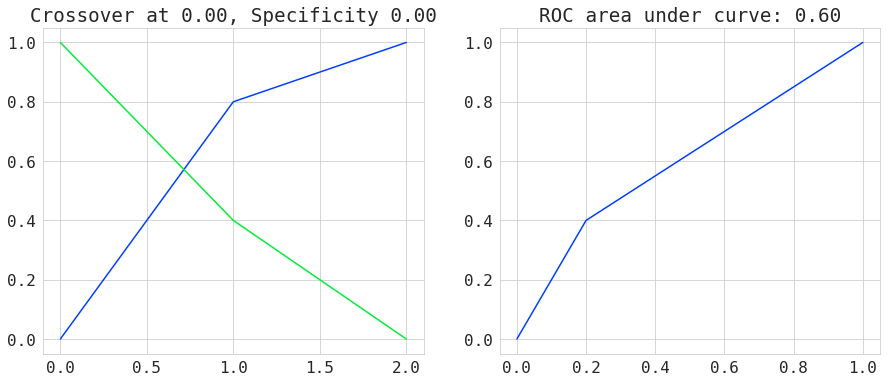

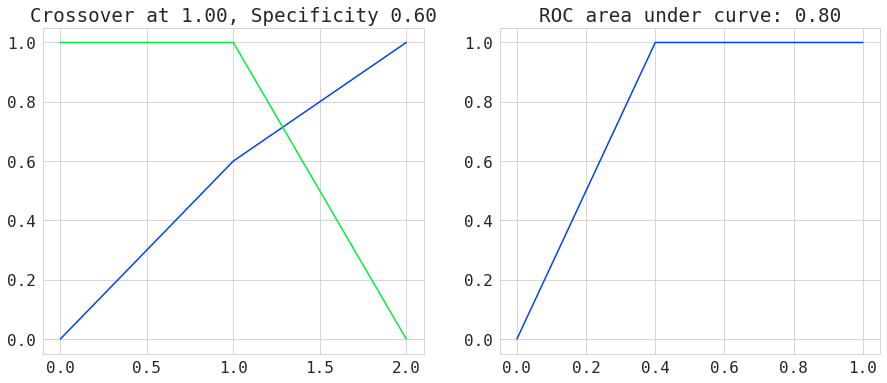

def roc_plots(X,y,model):
    from sklearn import metrics
    from sklearn.metrics import roc_curve, roc_auc_score, accuracy_score

    y_true = y.flatten()
    y_hat = model.predict(X)

    fpr, tpr, thresholds = roc_curve(y_true, y_hat)

    # Threshold Cutoff for predictions
    crossover_index = np.min(np.where(1.-fpr <= tpr))
    crossover_cutoff = thresholds[crossover_index]
    crossover_specificity = 1.-fpr[crossover_index]

    fig,axes=plt.subplots(ncols=2, figsize=(15,6))
    axes = axes.flatten()

    ax=axes[0]
    ax.plot(thresholds, 1.-fpr)
    ax.plot(thresholds, tpr)
    ax.set_title("Crossover at {0:.2f}, Specificity {1:.2f}".format(crossover_cutoff, crossover_specificity))

    ax=axes[1]
    ax.plot(fpr, tpr)
    ax.set_title("ROC area under curve: {0:.2f}".format(roc_auc_score(y_true, y_hat)))
    plt.show()

    roc = roc_auc_score(y_true,y_hat)

    return roc


    ### COMPUTE SCORES ###

def compute(X, y, model, hist=None, preds=True, summary=True, fusion=True,
            classes=None, report=True, roc=True):
    """
    evaluates model predictions and stores the output in a dict
    returns `results`
    """
    import pandas as pd
    import matplotlib.pyplot as plt
    from sklearn import metrics
    from sklearn.metrics import jaccard_score,accuracy_score, recall_score, fowlkes_mallows_score

    # initialize a spare improbability drive
    res = {}
    res['model'] = model.name

    # class predictions
    if preds:
        y_true = y.flatten()
        y_pred = model.predict_classes(X).flatten()
        res['preds'] = [y_pred]

    if summary:
        summary = model.summary()
        res['summary'] = model.summary


    # FUSION MATRIX
    if fusion:
        if classes is None:
            classes=['0','1']
        else:
            classes=classes
        # Plot fusion matrix
        FM = fusion_matrix(matrix=(y_true,y_pred),
                                    classes=classes)
        res['FM'] = FM

    # ROC Area Under Curve
    if roc:
        ROC = roc_plots(X, y, model)
        res['ROC'] = ROC

    # CLASSIFICATION REPORT
    if report:
        num_dashes=20
        print('\n')
        print('---'*num_dashes)
        print('\tCLASSIFICATION REPORT:')
        print('---'*num_dashes)
        # generate report
        report = metrics.classification_report(y_true,y_pred)
        res['report'] = report
        print(report)


    # save to dict:
    res['jaccard'] = jaccard_score(y_true, y_pred)
    res['fowlkes'] = fowlkes_mallows_score(y_true,y_pred)
    res['accuracy'] = accuracy_score(y_true, y_pred)
    res['recall'] = recall_score(y_true, y_pred)

    #Plot Model Training Results (PLOT KERAS HISTORY)
    if hist is not None:
        HIST = keras_history(hist)
        res['HIST'] = HIST

    return res

The functions above can be called in one-fell-swoop from spacekit’s computer.compute()

res1 = compute(X_test,y_test, model=classifier, hist=history)

Model: “sequential_2” _______________________ Layer (type) Output Shape Param #
================================================================= conv2d_1 (Conv2D) (None, 62, 62, 64) 1792
__
_____________________ conv2d_2 (Conv2D) (None, 60, 60, 64) 36928
_______________________ max_pooling2d_1 (MaxPooling2 (None, 30, 30, 64) 0
__
_____________________ conv2d_3 (Conv2D) (None, 28, 28, 64) 36928
_______________________ max_pooling2d_2 (MaxPooling2 (None, 14, 14, 64) 0
__
_____________________ flatten_1 (Flatten) (None, 12544) 0
_______________________ dense_1 (Dense) (None, 64) 802880
__
_____________________ dense_2 (Dense) (None, 1) 65
================================================================= Total params: 878,593 Trainable params: 878,593 Non-trainable params: 0 _________________________

fusion matrix 1

CLASSIFICATION REPORT: ------------------------------------------------------------
          precision    recall  f1-score   support

       0       1.00      0.60      0.75         5
       1       0.71      1.00      0.83         5

accuracy                           0.80        10    macro avg       0.86      0.80      0.79        10 weighted avg       0.86      0.80      0.79        10
m1 roc auc
m1 acc loss

Save Model / Model Weights

def cd_gdrive_mkdirs(model_subfolder='data/models/planet_vs_neg/'):

    """cd to /gdrive/My Drive/ to allow for saving files to google drive
    Also makes all subfolders in 'model_subfolder'"""

    import os
    ## To save to Gdrive, must first chdir to My Drive (so there's no spaces in fpath)
    curdir = os.path.abspath(os.curdir)
    data_folder =r'/gdrive/My Drive/Colab Notebooks/starskope/data'

    try:
        os.chdir(data_folder)
    except Exception as e:
        print(f'ERROR: {e}')

    try:
        os.makedirs(model_subfolder,exist_ok=True)
        print('Directories created.')
    except:
        print('Error making directories')

    return print(os.path.abspath(os.curdir))

model_subfolder='data/models/planet_vs_neg/'
cd_gdrive_mkdirs(model_subfolder=model_subfolder)

print('\n',model_subfolder)
os.listdir(model_subfolder)

Implementing Keras Early-Stopping

# checkpoint
from keras.callbacks import ModelCheckpoint, EarlyStopping, CSVLogger

def create_csvlogger(filename):
    return CSVLogger(filename, separator=',', append=False)

def create_checkpoint(monitor='val_accuracy',
                      model_subfolder='data/models/planet_vs_neg/'):
    filepath=model_subfolder+"weights-improvement-{epoch:02d}-{"+monitor+":.2f}.hdf5"
    checkpoint = ModelCheckpoint(filepath, monitor=monitor, verbose=1,
                                 save_best_only=True, mode='max')
    return checkpoint

def create_early_stopping(monitor = 'val_accuracy',min_delta = 0, patience = 1,
                          verbose = 1, restore_best_weights = True):

    args = locals()
    earlystop = EarlyStopping(**args)
    return earlystop
# def get_callbacks():
model_subfolder='data/models/planet_vs_neg/'
cd_gdrive_mkdirs(model_subfolder=model_subfolder)
callbacks_list = [create_checkpoint('val_accuracy'),
                  create_early_stopping(),
                  create_csvlogger(model_subfolder+'callback_log.csv')]
callbacks_list

Directories created. /gdrive/My Drive/Colab Notebooks/starskope/data [<keras.callbacks.callbacks.ModelCheckpoint at 0x7fae86050748>, <keras.callbacks.callbacks.EarlyStopping at 0x7fae86050780>, <keras.callbacks.callbacks.CSVLogger at 0x7fae860507b8>]

# filepath=model_subfolder+
monitor = 'val_accuracy'
filepath=model_subfolder+"weights-improvement-{epoch:02d}-{"+monitor+":.2f}.hdf5"
#filepath
# model_subfolder
model_subfolder='data/models/planet_vs_neg/'
cd_gdrive_mkdirs(model_subfolder=model_subfolder)
callbacks_list = [create_checkpoint('val_accuracy'),
                  create_early_stopping(),
                  create_csvlogger(model_subfolder+'callback_log.csv')]
callbacks_list

Keras CNN with Callbacks

# Part 1 - Building the CNN
clock = fs.jmi.Clock()
clock.tic('')
# Importing the Keras libraries and packages
from keras.models import Sequential
from keras.layers import Conv2D
from keras.layers import MaxPooling2D
from keras.layers import Flatten
from keras.layers import Dense

# Initialising the CNN
classifier2 = Sequential()

# Step 1 - Convolution
classifier2.add(Conv2D(SHAPES['Batchsize'], (5, 5),
                             input_shape = (SHAPES['img_width'],
                                            SHAPES['img_height'],
                                            SHAPES['img_dim']),
                             activation = 'relu'))

classifier2.add(Conv2D(SHAPES['Batchsize'], (3, 3),
                      input_shape = (SHAPES['img_width'],
                                     SHAPES['img_height'],
                                     SHAPES['img_dim']),
                       activation = 'relu'))
# Step 2 - Pooling
classifier2.add(MaxPooling2D(pool_size = (2, 2)))

# Adding a second convolutional layer
classifier2.add(Conv2D(SHAPES['Batchsize'], (3, 3),
                      activation = 'relu'))
classifier2.add(MaxPooling2D(pool_size = (2, 2)))

# Step 3 - Flattening
classifier2.add(Flatten())

# Step 4 - Full connection
classifier2.add(Dense(units = SHAPES['Batchsize'], activation = 'relu'))

classifier2.add(Dense(units = 1, activation = 'sigmoid'))

# Compiling the CNN
classifier2.compile(optimizer = 'adam',
                   loss = 'binary_crossentropy',
                   metrics = ['accuracy'])
print()
display(classifier2.summary())
# Part 2 - Fitting the CNN to the images

history2 =classifier2.fit_generator(training_set,
                         steps_per_epoch = 1000,
                         epochs = 3,
                         validation_data = val_set,#test_set,
                         validation_steps = 500,workers=-1,
                         callbacks=callbacks_list)

clock.toc('')


— CLOCK STARTED @: 05/03/20 - 09:15:43 AM Label: —

Model: “sequential_4” _______________________ Layer (type) Output Shape Param #
================================================================= conv2d_7 (Conv2D) (None, 60, 60, 64) 4864
__
_____________________ conv2d_8 (Conv2D) (None, 58, 58, 64) 36928
_______________________ max_pooling2d_5 (MaxPooling2 (None, 29, 29, 64) 0
__
_____________________ conv2d_9 (Conv2D) (None, 27, 27, 64) 36928
_______________________ max_pooling2d_6 (MaxPooling2 (None, 13, 13, 64) 0
__
_____________________ flatten_3 (Flatten) (None, 10816) 0
_______________________ dense_5 (Dense) (None, 64) 692288
__
_____________________ dense_6 (Dense) (None, 1) 65
================================================================= Total params: 771,073 Trainable params: 771,073 Non-trainable params: 0 _________________________ None Epoch 1/3 1000/1000 [==============================] - 50s 50ms/step - loss: 0.4111 - accuracy: 0.7974 - val_loss: 0.7305 - val_accuracy: 0.7500

Epoch 00001: val_accuracy improved from -inf to 0.75000, saving model to data/models/planet_vs_neg/weights-improvement-01-0.75.hdf5 Epoch 2/3 1000/1000 [==============================] - 50s 50ms/step - loss: 0.1581 - accuracy: 0.9497 - val_loss: 2.2786 - val_accuracy: 0.6250

Epoch 00002: val_accuracy did not improve from 0.75000 Restoring model weights from the end of the best epoch Epoch 00002: early stopping — TOTAL DURATION = 1 min, 40.158 sec — Summary Table of Clocked Processes TOTAL 05/03/20 - 09:15:43 AM 1 min, 40.158 sec

Model Evaluation

res2 = compute(X_test,y_test, model=classifier2, hist=history2)

Model: “sequential_4” _______________________ Layer (type) Output Shape Param #
================================================================= conv2d_7 (Conv2D) (None, 60, 60, 64) 4864
__
_____________________ conv2d_8 (Conv2D) (None, 58, 58, 64) 36928
_______________________ max_pooling2d_5 (MaxPooling2 (None, 29, 29, 64) 0
__
_____________________ conv2d_9 (Conv2D) (None, 27, 27, 64) 36928
_______________________ max_pooling2d_6 (MaxPooling2 (None, 13, 13, 64) 0
__
_____________________ flatten_3 (Flatten) (None, 10816) 0
_______________________ dense_5 (Dense) (None, 64) 692288
__
_____________________ dense_6 (Dense) (None, 1) 65
================================================================= Total params: 771,073 Trainable params: 771,073 Non-trainable params: 0

m2 fusion matrix
m1 roc auc

CLASSIFICATION REPORT: ------------------------------------------------------------
          precision    recall  f1-score   support

       0       0.60      0.60      0.60         5
       1       0.60      0.60      0.60         5

accuracy                           0.60        10    macro avg       0.60      0.60      0.60        10 weighted avg       0.60      0.60      0.60        10
m1 acc loss

Load weights

# from keras.utils import
model_loaded = classifier2
model_loaded.load_weights('data/models/planet_vs_neg/weights-improvement-01-0.75.hdf5')
#model_loaded.weights

Save Model

def save_model(model,model_subfolder = 'data/models/planet_vs_neg/',
               base_modelname = 'CNN_planet_neg_05022020', as_json=True,
               return_fpaths=True,verbose=True):
    import os
    ## To save to Gdrive, must first chdir to My Drive (so there's no spaces in fpath)
    curdir = os.path.abspath(os.curdir)

    main_folder =r'/gdrive/My Drive/Colab Notebooks/starskope'
    model_subfolder = 'data/models/planet_vs_neg/'

    try:
        os.chdir(main_folder)
        os.makedirs(model_subfolder,exist_ok=True)
    except Exception as e:
        print(f'ERROR: {e}')

    # os.listdir(model_subfolder)
    # https://jovianlin.io/saving-loading-keras-models/
    try:
        weight_fpath = model_subfolder+base_modelname+'_weights.h5'
        model.save_weights(weight_fpath, overwrite=True)

        if as_json:
            model_fpath = model_subfolder+base_modelname+'_model.json'
            # Save the model architecture
            with open(model_fpath, 'w') as f:
                f.write(model.to_json())
        else:
            model_fpath = model_subfolder+base_modelname+'_model.h5'
            model.save(model_fpath)
        if verbose:
            print(f"[io] Model architecture saved as {model_fpath}")
            print(f"[io] Model weights saved as {weight_fpath}")
        else:
            print(f"[io] Successfully saved model.")

    except Exception as e:
        import warnings
        warnings.warn(f"ERROR SAVING: {e}")
    if return_fpaths:
        return model_fpath, weight_fpath



def load_model(model_fpath,weight_fpath=None,as_json=True):
    from keras.models import model_from_json
    if (as_json == True) & (weight_fpath is None):
        raise Exception('If using as_json=True, must provide ')

    # Model reconstruction from JSON file
    with open(model_fpath, 'r',encoding="utf8") as f:
        model2 = model_from_json(f.read())

    # Load weights into the new model
    model2.load_weights(weight_fpath)
    display(model2.summary())
    return model2

model_fpath,weight_fpath = save_model(classifier2)
model_loaded = load_model(model_fpath,weight_fpath)

[io] Model architecture saved as data/models/planet_vs_neg/CNN_planet_neg_05022020model.json [io] Model weights saved as data/models/planet_vs_neg/CNN_planet_neg_05022020_weights.h5 Model: “sequential_4” ______________________ Layer (type) Output Shape Param #
================================================================= conv2d_7 (Conv2D) (None, 60, 60, 64) 4864
__
_____________________ conv2d_8 (Conv2D) (None, 58, 58, 64) 36928
_______________________ max_pooling2d_5 (MaxPooling2 (None, 29, 29, 64) 0
__
_____________________ conv2d_9 (Conv2D) (None, 27, 27, 64) 36928
_______________________ max_pooling2d_6 (MaxPooling2 (None, 13, 13, 64) 0
__
_____________________ flatten_3 (Flatten) (None, 10816) 0
_______________________ dense_5 (Dense) (None, 64) 692288
__
_____________________ dense_6 (Dense) (None, 1) 65
================================================================= Total params: 771,073 Trainable params: 771,073 Non-trainable params: 0 _________________________ None

Tune Model with Gridsearch

def build_model(SHAPES,filter_size=(3,3), pool_size=(2,2),dropout=True):
    vars_ = locals()
    print(f'[i] MODEL BUILT USING:\n\t{vars_}')
    # Part 1 - Building the CNN

    # Importing the Keras libraries and packages
    from keras.models import Sequential
    from keras.layers import Conv2D
    from keras.layers import MaxPooling2D
    from keras.layers import Flatten
    from keras.layers import Dense, Dropout

    # Initialising the CNN
    classifier = Sequential()

    # Step 1 - Convolution
    classifier.add(Conv2D(SHAPES['Batchsize'], filter_size,
                                input_shape = (SHAPES['img_width'], SHAPES['img_height'], SHAPES['img_dim']),
                                activation = 'relu'))

    classifier.add(Conv2D(SHAPES['Batchsize'], filter_size,
                        input_shape = (SHAPES['img_width'], SHAPES['img_height'], SHAPES['img_dim']), activation = 'relu'))

    # Step 2 - Pooling
    classifier.add(MaxPooling2D(pool_size = pool_size))
    if dropout:
        classifier.add(Dropout(0.2))

    # Adding a second convolutional layer
    classifier.add(Conv2D(SHAPES['Batchsize'], filter_size, activation = 'relu'))
    classifier.add(MaxPooling2D(pool_size = pool_size))

    # Step 3 - Flattening
    classifier.add(Flatten())

    # Step 4 - Full connection
    classifier.add(Dense(units = SHAPES['Batchsize'], activation = 'relu'))
    classifier.add(Dense(units = 1, activation = 'sigmoid'))

    # Compiling the CNN
    classifier.compile(optimizer = 'adam', loss = 'binary_crossentropy',
                       metrics = ['accuracy'])
    display(classifier.summary())
    return classifier
    # Part 2 - Fitting the CNN to the images



def train_model(classifier,training_set, test_set,
                params=dict(steps_per_epoch = 2000,
                            epochs = 3, validation_steps = 500,
                            workers=-1)):
    vars = locals()
    print(f'[i] Training model using\n\t{vars}\n')
    clock = Timer()

    history_ = classifier.fit_generator(training_set,
                                        validation_data = test_set,
                                        **params)

    clock.stop()
    return history_

model_3 = build_model(SHAPES)
history_3 = train_model(model_3,training_set,test_set)
res3=compute(X_test,y_test,model=model_3,hist=history_3)

[i] MODEL BUILT USING: {‘dropout’: True, ‘pool_size’: (2, 2), ‘filter_size’: (3, 3), ‘SHAPES’: {‘Batchsize’: 64, ‘img_width’: 64, ‘img_height’: 64, ‘img_dim’: 3}} Model: “sequential_8” _______________________ Layer (type) Output Shape Param #
================================================================= conv2d_18 (Conv2D) (None, 62, 62, 64) 1792
__
_____________________ conv2d_19 (Conv2D) (None, 60, 60, 64) 36928
_______________________ max_pooling2d_12 (MaxPooling (None, 30, 30, 64) 0
__
_____________________ dropout_3 (Dropout) (None, 30, 30, 64) 0
_______________________ conv2d_20 (Conv2D) (None, 28, 28, 64) 36928
__
_____________________ max_pooling2d_13 (MaxPooling (None, 14, 14, 64) 0
_______________________ flatten_6 (Flatten) (None, 12544) 0
__
_____________________ dense_11 (Dense) (None, 64) 802880
_______________________ dense_12 (Dense) (None, 1) 65
================================================================= Total params: 878,593 Trainable params: 878,593 Non-trainable params: 0 __
_____________________ None [i] Training model using {‘params’: {‘steps_per_epoch’: 2000, ‘epochs’: 3, ‘validation_steps’: 500, ‘workers’: -1}, ‘test_set’: <keras.preprocessing.image.NumpyArrayIterator object at 0x7faefa99d9b0>, ‘training_set’: <keras.preprocessing.image.NumpyArrayIterator object at 0x7faefa99de48>, ‘classifier’: <keras.engine.sequential.Sequential object at 0x7fae18a56128>}

[i] Timer started at 05/03/20 - 09:34:42 Epoch 1/3 2000/2000 [==============================] - 100s 50ms/step - loss: 0.2498 - accuracy: 0.8732 - val_loss: 1.6502 - val_accuracy: 0.6000 Epoch 2/3 2000/2000 [==============================] - 100s 50ms/step - loss: 0.0021 - accuracy: 0.9993 - val_loss: 2.4729 - val_accuracy: 0.6000 Epoch 3/3 2000/2000 [==============================] - 100s 50ms/step - loss: 0.0440 - accuracy: 0.9850 - val_loss: 5.2819 - val_accuracy: 0.7000 [i] Timer stopped at 05/03/20 - 09:39:43

m3 fusion matrix
m3 roc auc

CLASSIFICATION REPORT: ------------------------------------------------------------
          precision    recall  f1-score   support

       0       0.57      0.80      0.67         5
       1       0.67      0.40      0.50         5

accuracy                           0.60        10    macro avg       0.62      0.60      0.58        10 weighted avg       0.62      0.60      0.58        10
m3 acc loss

Save model in Gdrive

## To save to Gdrive, must first chdir to My Drive (so there's no spaces in fpath)
curdir = os.path.abspath(os.curdir)

main_folder =r'/gdrive/My Drive/Colab Notebooks/starskope'
model_subfolder = 'data/models/planet_vs_neg/'

try:
    os.chdir(main_folder)
    os.makedirs(model_subfolder,exist_ok=True)
except Exception as e:
    print(f'ERROR: {e}')
os.listdir(model_subfolder)

[‘CNN_planet_neg_05022020_weights.h5’, ‘CNN_planet_neg_05022020_model.json’]

Conclusion

Phase 3: Scrape MAST via API on AWS

In order to improve the model, therefore, the next step was to generate a larger dataset of images, using not only all the data from Kaggle, but also import additional signal datasets from the MAST API. Traditionally, this can be done from the MAST website directly. However, it is now possible to scrape the data for free from AWS where it is being (at least temporarily) housed. See my next post starskope-3 to see how I scrape the MAST API data hosted on AWS via S3 to perform a more in-depth analysis using a physics-based machine learning model.


           /\    _       _                           _                      *
/\_/\_____/  \__| |_____| |_________________________| |___________________*___
[===]    / /\ \ | |  _  |  _  | _  \/ __/ -__|  \| \_  _/ _  \ \_/ | * _/| | |
 \./    /_/  \_\|_|  ___|_| |_|__/\_\ \ \____|_|\__| \__/__/\_\___/|_|\_\|_|_|
                  | /             |___/
                  |/
Your Browser Doesn't Support Canvas, Please Download Chrome or compatible browser. tags: astrophysics - project - computer-vision - neural-networks - spectroscopy
